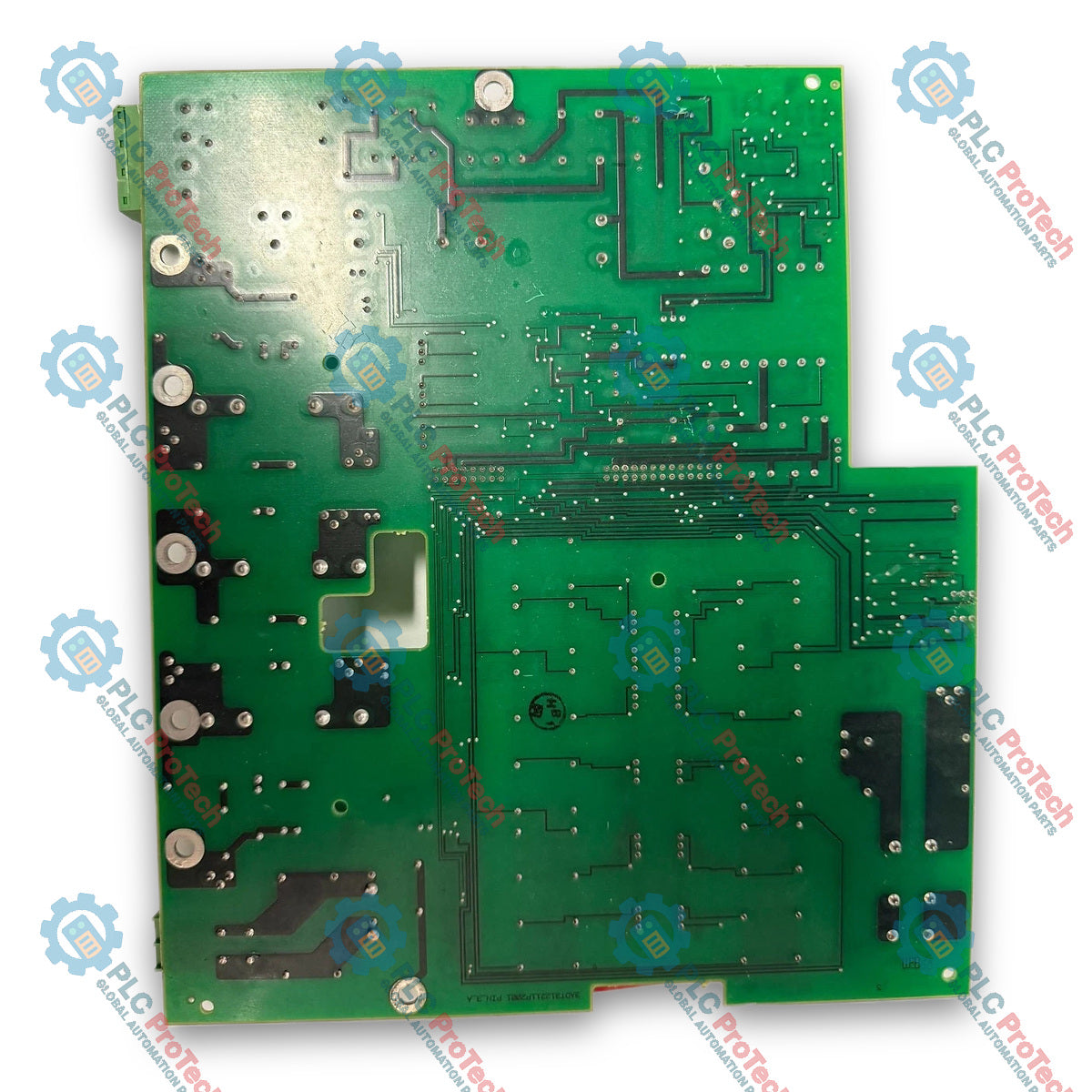

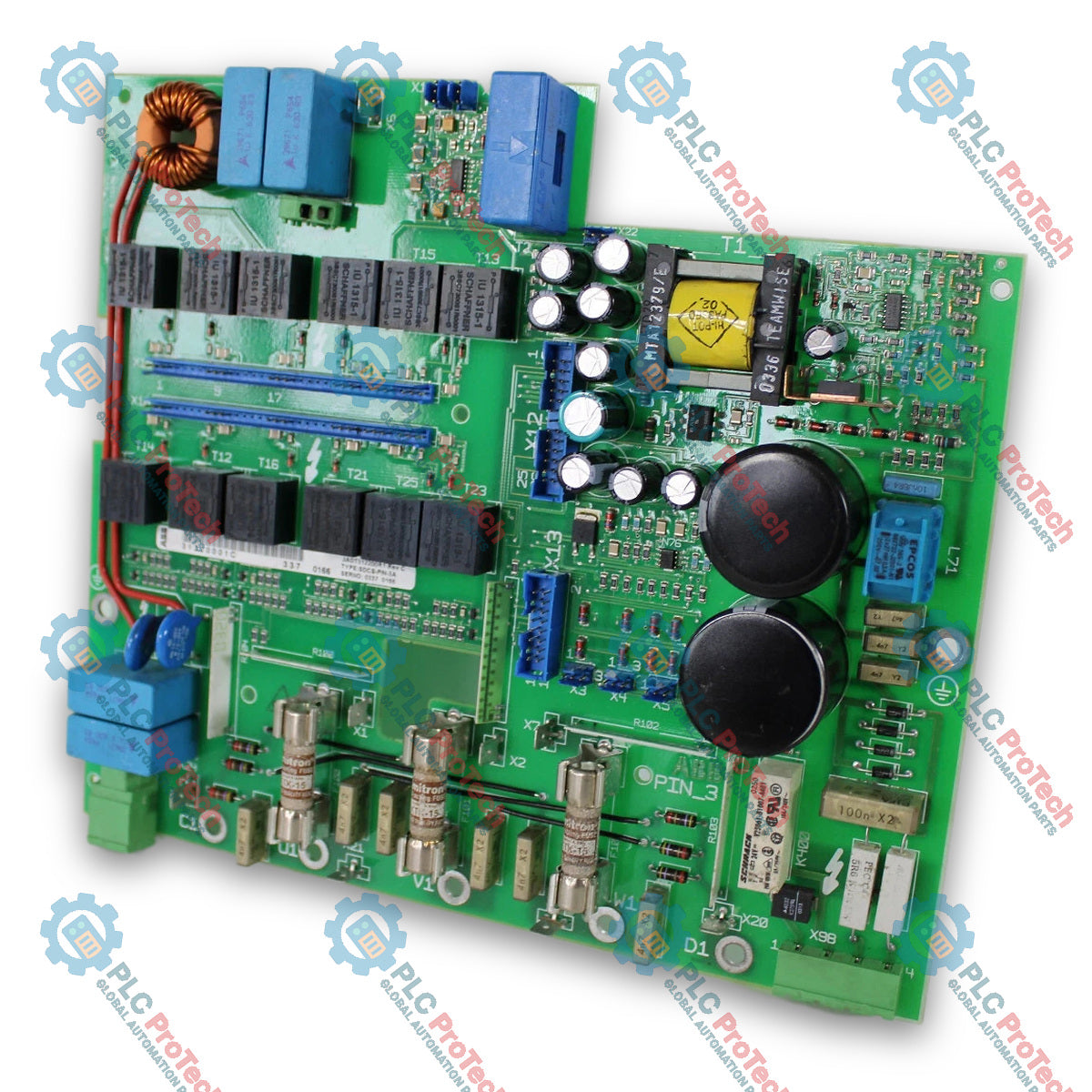

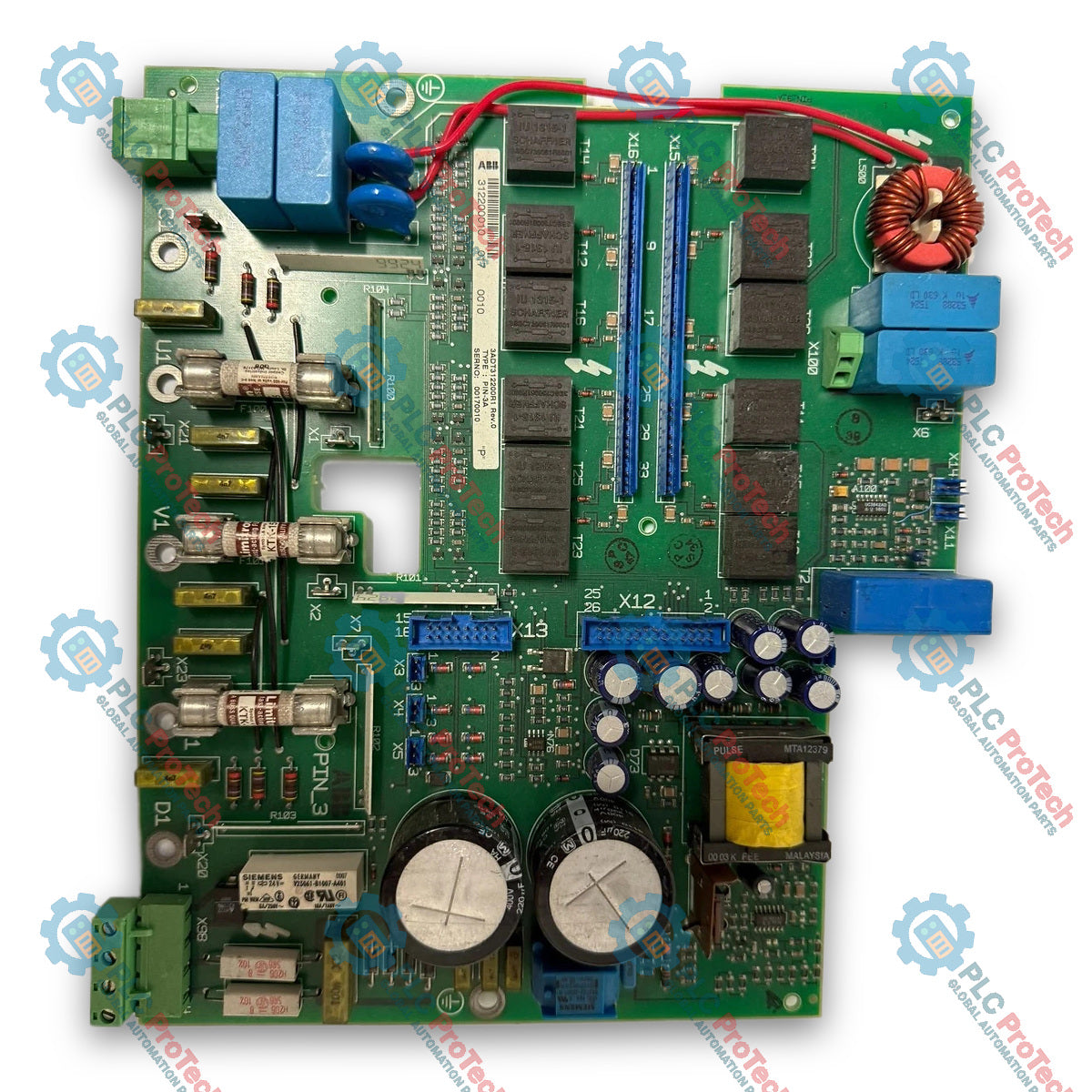

ABB SDCS-PIN-3A 3ADT312200R1 Power Interface Board

Description

The ABB SDCS-PIN-3A (Part Number 3ADT312200R1) is a specialized power interface board designed for integration within ABB DCS 400 thyristor power converter modules. Situated directly between the main thyristor power bridge, high-voltage feedback networks, and the SDCS-CON-3A control board, this board provides signal conditioning, firing pulse routing, and voltage/current measurement isolation across two-quadrant (DCS 401) and four-quadrant (DCS 402) DC drive systems.

Operating as the primary internal power interface across DCS 400 module frame sizes (A1 through A4), the SDCS-PIN-3A manages critical low-voltage and high-voltage signal paths. It handles line voltage sensing, AC line frequency detection, phase sequence evaluation, and thyristor gate drive signal distribution. By converting high-power feedback signals into safe, scaled analog inputs for processing, it ensures real-time armature voltage, field excitation, and current loop control execution.

Features

• Gating Pulse Distribution: Routes isolated firing pulse signals generated by the main control board directly to the power converter's thyristor modules.
• Integrated Line & Voltage Sensing: Measures 3-phase AC mains voltage supply and DC armature output voltage for system voltage regulation and phase sequence detection.
• Electronics Supply Interfacing: Manages single-phase auxiliary supply power routing (115 V AC to 230 V AC) for internal control circuit operation.
• Onboard Current & Thermal Monitoring: Interfacing for current feedback measurements and heat sink overtemperature sensor evaluation (PTC/thermal switch).
• Cross-Frame Compatibility: Native board architecture scaled to serve DCS 400 converter frame sizes A1, A2, A3, and A4 across current ratings from 20 A to 1000 A.

Applications

• ABB DCS 400 DC Converter Modules: Internal power supply, gate driving, and feedback signal processing for DCS 401 (2-quadrant) and DCS 402 (4-quadrant) thyristor drives.
• Armature & Field Power Interfacing: Real-time signal conditioning for DC motor speed control, torque current regulation, and automatic field weakening loops.
• Industrial DC Motor Drives: Control electronics interface for industrial DC drive systems running pumps, fans, extruders, conveyors, and heavy industrial machinery.

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. Safety Precaution: Disconnect and lock out all 3-phase main AC line supplies, 1-phase auxiliary supplies, and external field control supplies before opening the DCS 400 module cover.
2. Electrostatic Discharge (ESD): Use a grounded ESD wrist strap and anti-static mat when handling the replacement board to avoid electrostatic damage to sensitive CMOS circuitry.
3. Module Access: Remove the light-grey front cover (RAL 9002) of the DCS 400 converter module to expose the internal card cage and control board stack.
4. Cable Identification: Mark all internal ribbon cables, multi-pin harness plugs, and high-voltage connection leads prior to removal to ensure exact re-assembly mapping.
5. Hardware Mounting: Carefully unfasten retaining screws, ensuring non-conductive standoffs and spacers are retained and reinstalled properly. Secure the board using factory-specified mounting points.
6. Wiring Verification: Ensure all push-on connectors and ribbon cable plugs (X1–X14, X99) are fully seated and securely latched.

Commissioning Recommendations

1. Supply Voltage Verification: Before applying main power, verify that the 1-phase auxiliary supply on terminal block X99 matches the board tap configuration (115 V AC or 230 V AC).
2. Cold Inspection: Check for proper insulation clearances between high-voltage sensing lines on the board and adjacent metallic frame structural components.
3. Power-Up Diagnostic: Apply auxiliary power. Monitor the 7-segment display on the connected SDCS-CON-3A control board to confirm that the internal watchdog self-test passes without supply or reset faults.
4. Parameter Verification: Verify drive armature voltage, field voltage, and AC mains nominal parameters in the DCS 400 control software or keypad panel before enabling thyristor bridge firing outputs.
