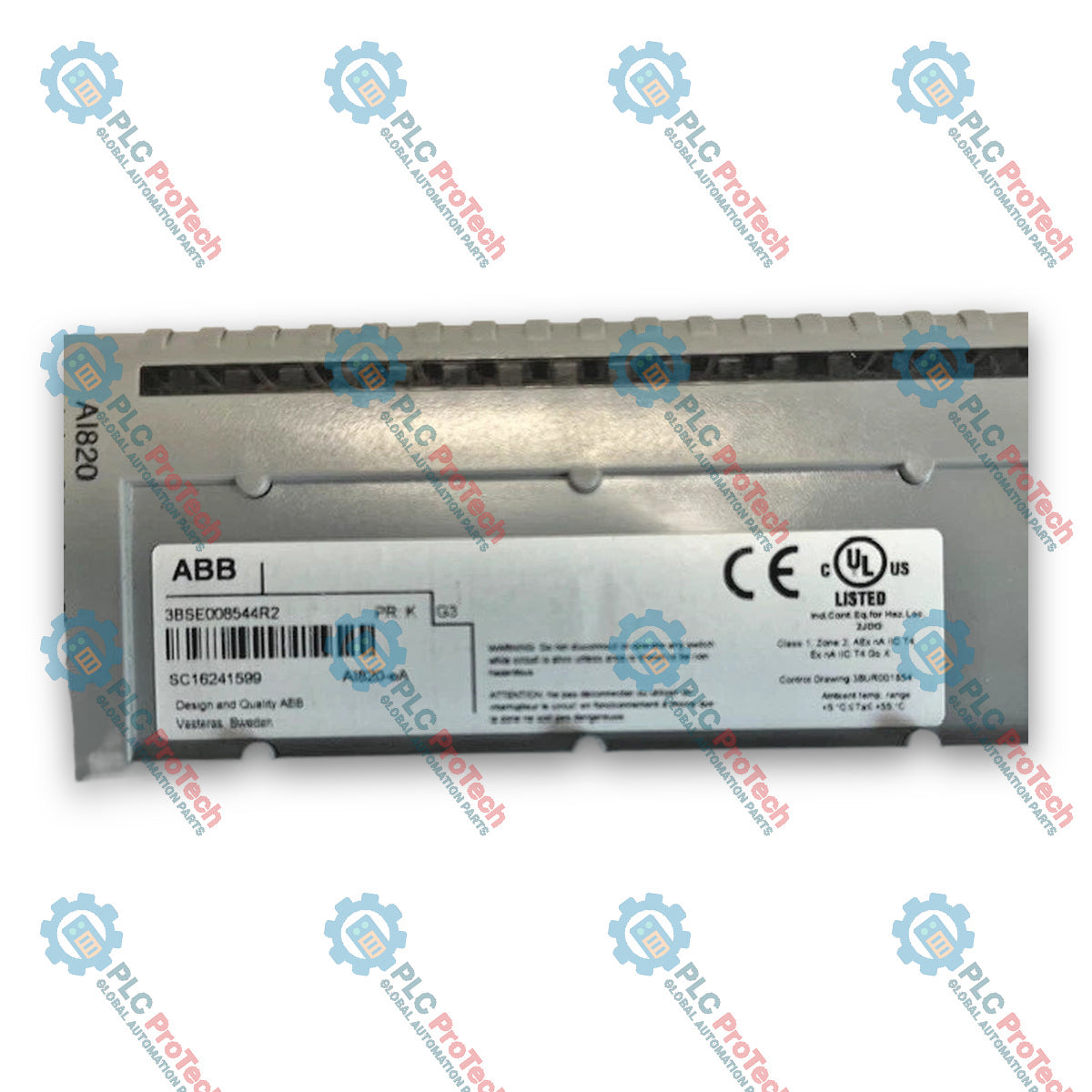

ABB 3BSE008544R2 AI820-eA S800 I/O Analog Input Module

Description

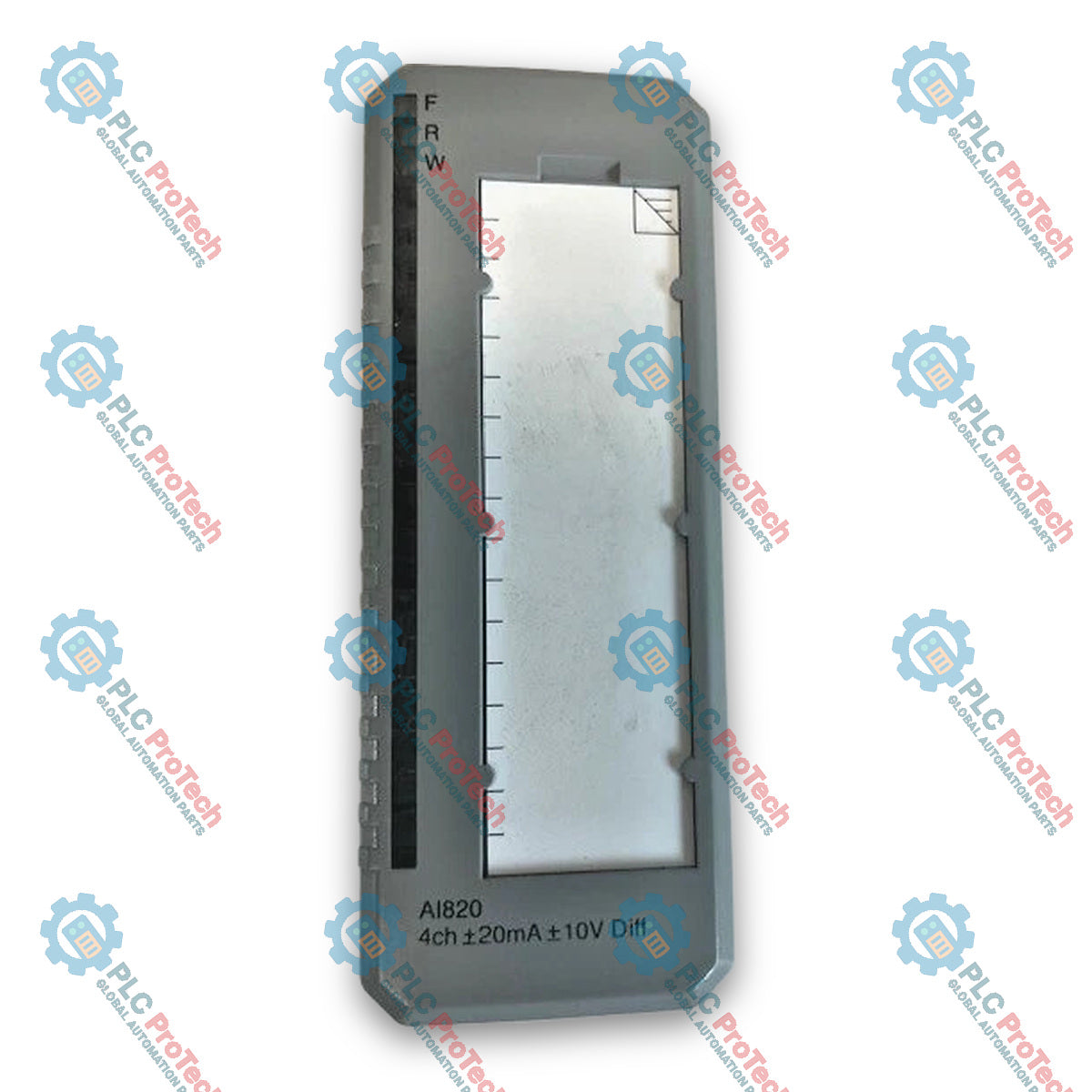

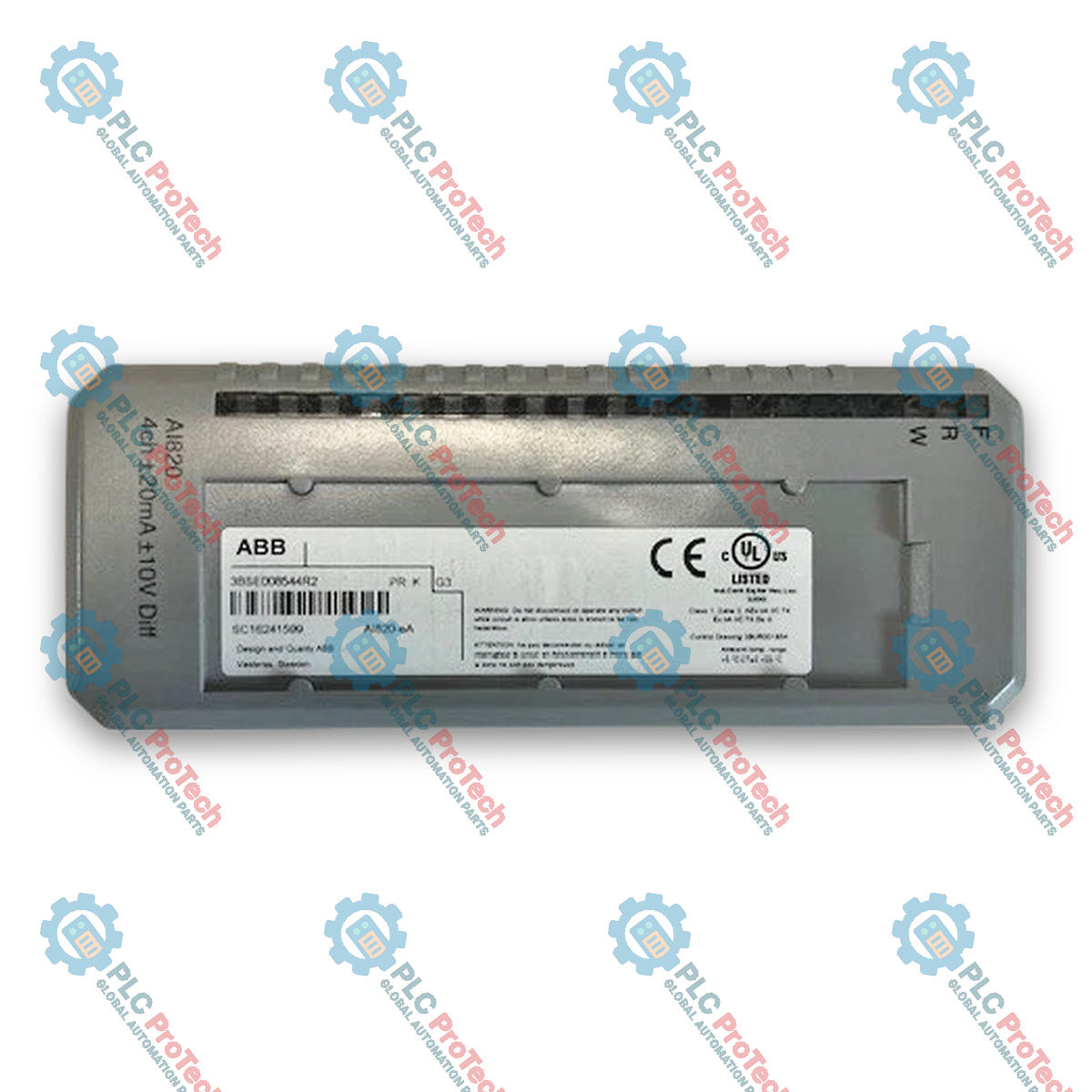

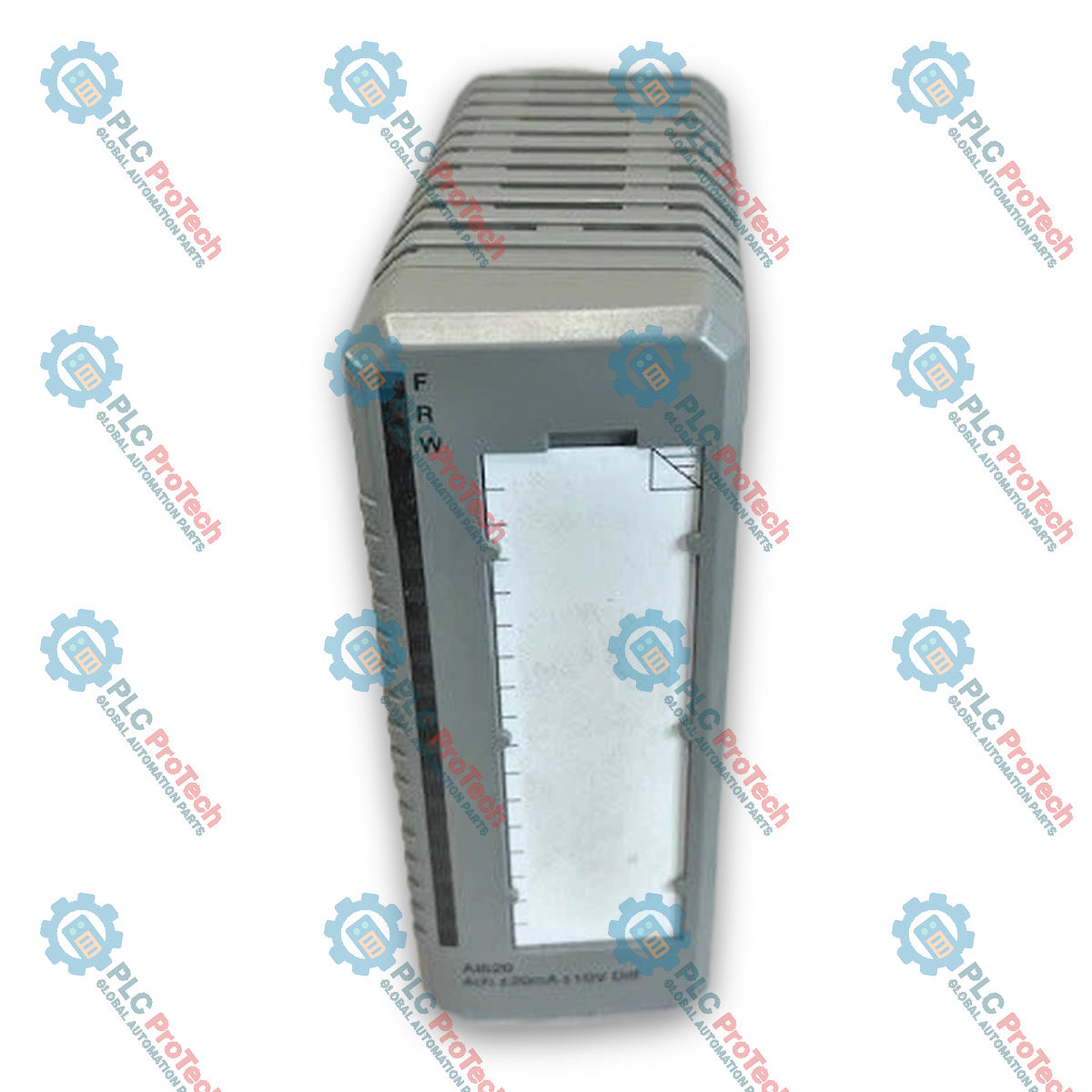

The ABB 3BSE008544R2 AI820-eA is a 4-channel analog input I/O module designed for high-accuracy signal acquisition within ABB S800 I/O and Compact Product Suite control platforms. Operating as a differential analog input interface, it converts continuous field measurements into digitized process values for real-time control, monitoring, and supervisory applications.

Featuring 4 individually configurable differential channels with 14-bit plus sign resolution, the ABB 3BSE008544R2 AI820-eA accommodates diverse voltage and current measurement ranges. It supports unipolar and bipolar inputs including +/-20 mA, 0(4)...20 mA, +/-10 V, +/-5 V, and 0(1)...5 V. The module provides a 50 V common mode voltage rating and 50 V rated isolation to maintain signal integrity in industrial noise environments. It mounts directly onto standard S800 Module Termination Units (MTUs) such as the TU810, TU812, TU814, TU830, or TU833.

Features

• 4 Differential Input Channels: Equips systems with 4 individual differential analog channels for flexible field sensor interfacing.
• High-Resolution Conversion: Delivers 14-bit plus sign Analog-to-Digital conversion for precise measurement fidelity across broad process signal ranges.
• Multi-Range Signal Support: Accepts bipolar and unipolar inputs, including +/-20 mA, 0(4)...20 mA, +/-10 V, +/-5 V, and 0(1)...5 V.
• Low Current Input Resistance: Built with a 250 Ohm internal current input resistance (Rin) for accurate loop current measurement.
• Common Mode & Isolation Protection: Rated for 50 V common mode voltage (CMV) and 50 V isolation to protect control electronics from noise and floating ground potentials.
• Versatile Termination Unit Mounting: Fully compatible with S800 base termination units TU810, TU812, TU814, TU830, and TU833.

Applications

• Process Control Acquisition: Precise monitoring of process transmitters measuring pressure, flow, temperature, and level in S800 I/O installations.
• Differential Measurement Loops: Interfacing field instruments operating with floating potentials or non-grounded differential outputs.
• Compact Product Suite Automation: Integrating analog signals into AC 800M or Compact Control 800 process systems.

Technical Specifications

General

Input Capabilities & Performance

Mechanical

Compliance

Connections / Interfaces

Installation Guidelines

1. Power Shutdown: Turn off supply power to the S800 I/O station before inserting or removing the module from its termination unit.
2. MTU Selection: Verify that a compatible Module Termination Unit (TU810, TU812, TU814, TU830, or TU833) is mounted and securely latched to the DIN rail.
3. ESD Precautions: Wear an antistatic wrist strap connected to cabinet ground when handling the module to prevent static discharge damage.

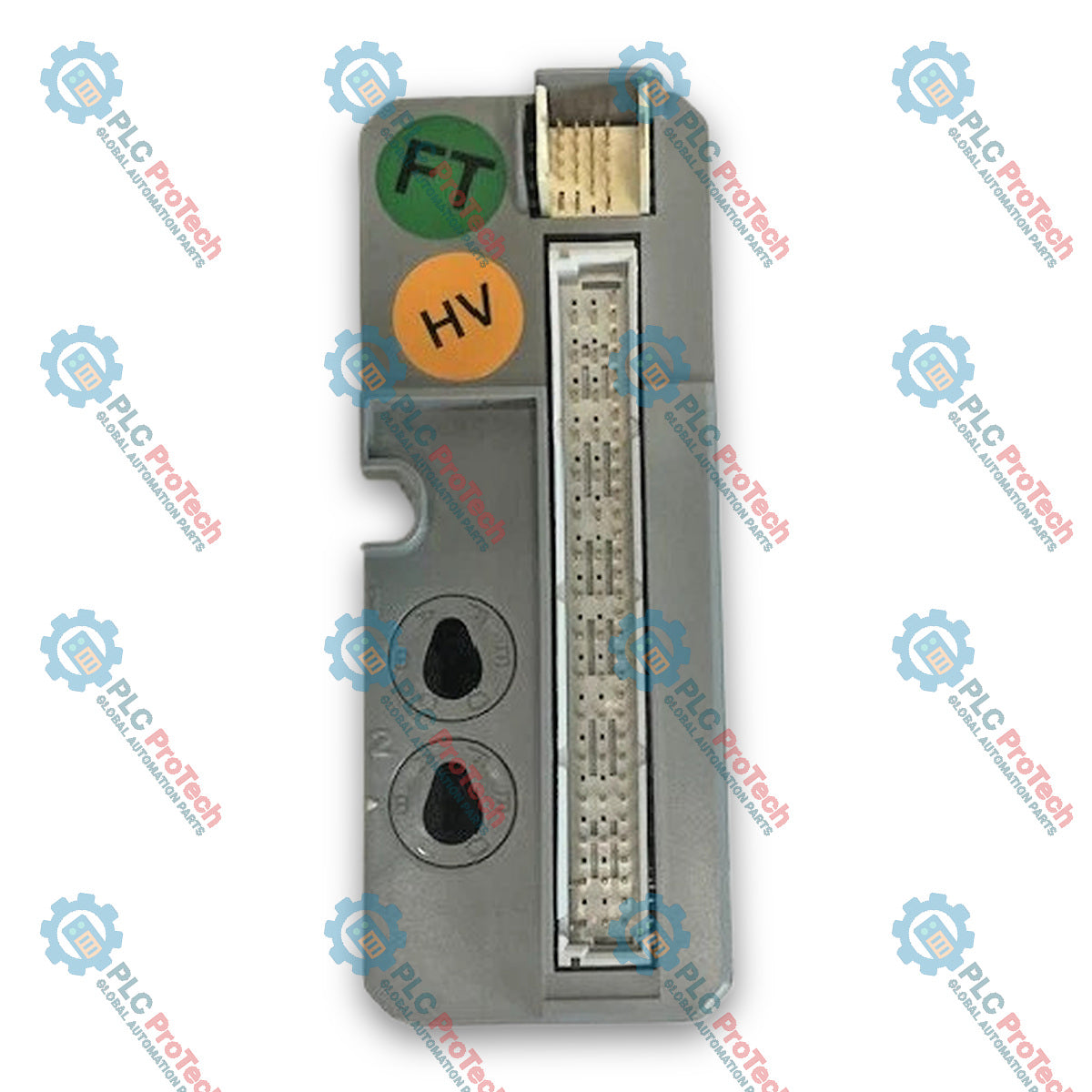

4. Mechanical Alignment: Align the module rear connector with the slot on the MTU, then press firmly until the locking mechanism engages completely.
5. Field Wiring Integrity: Check field loop wiring to ensure current loop transmitters match the 250 Ohm input impedance rating and do not exceed the 50 V common mode voltage limit.

Commissioning Recommendations

1. Channel Configuration: Configure channel input signal types (e.g., 4...20 mA or +/-10 V) in the Control Builder engineering environment prior to system startup.
2. Signal Calibration Check: Apply a calibrated reference signal (e.g., 4 mA and 20 mA) across input terminals to verify raw count scaling and resolution in software.
3. Diagnostic Verification: Monitor system status LEDs on the module faceplate to confirm normal operational status and absence of channel fault conditions.
