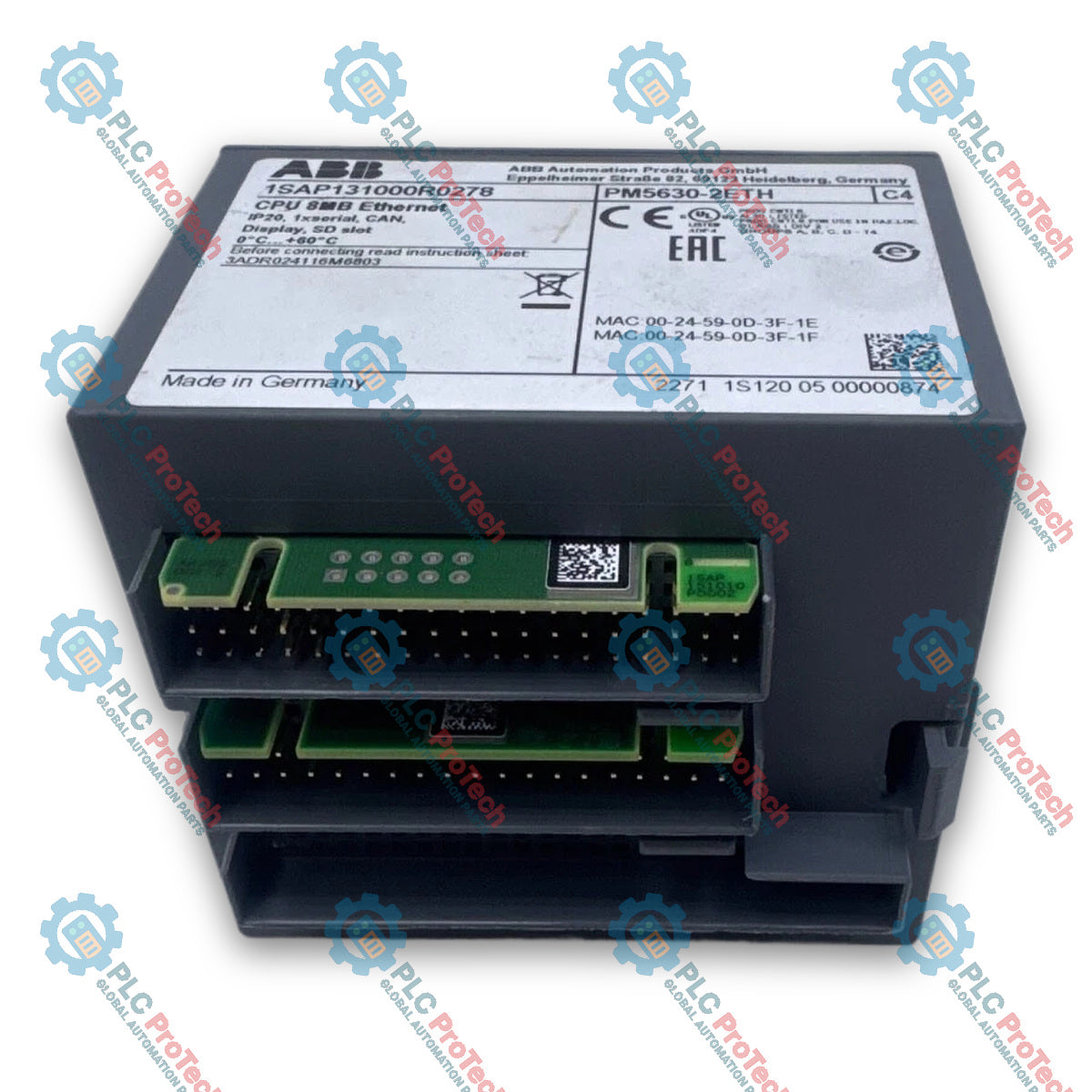

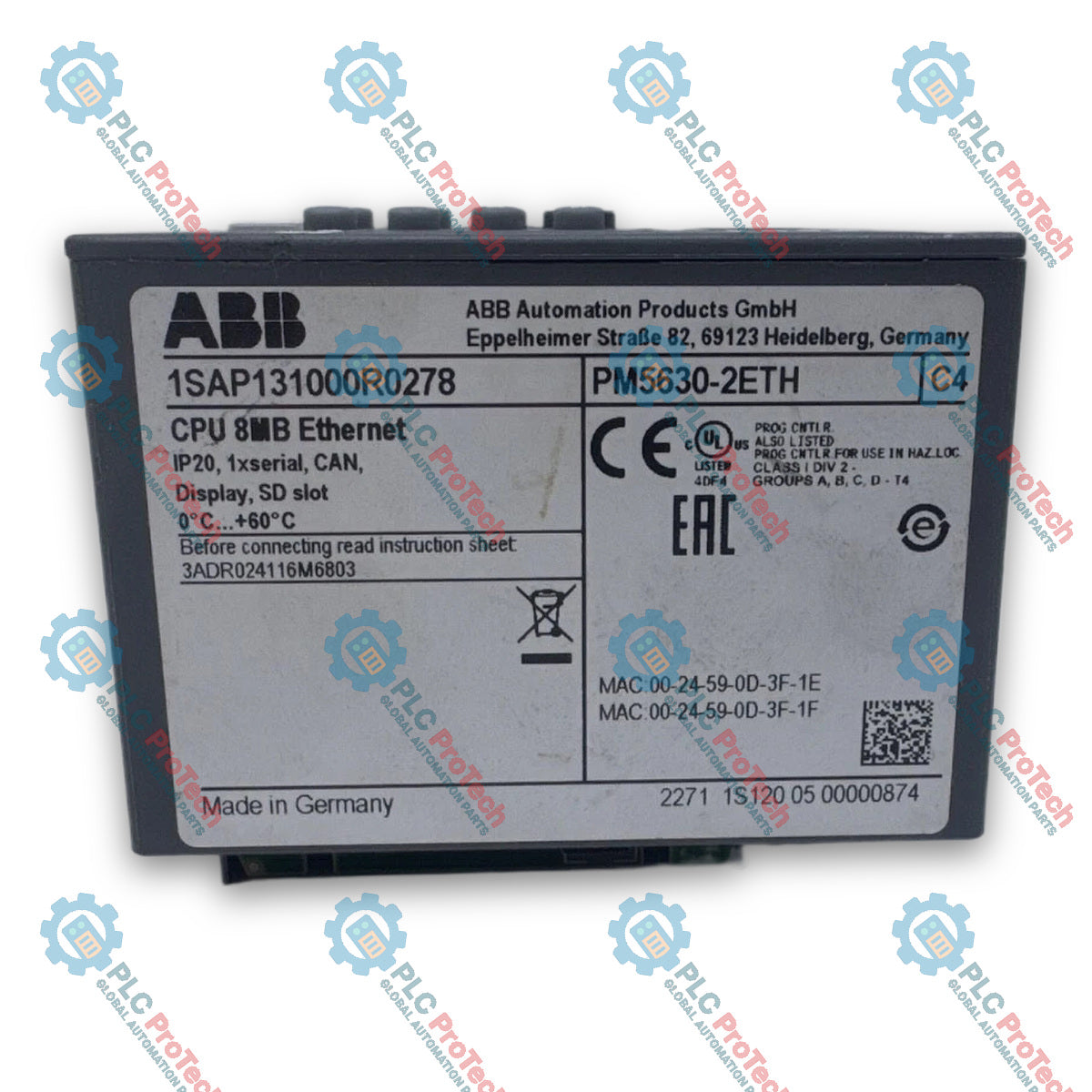

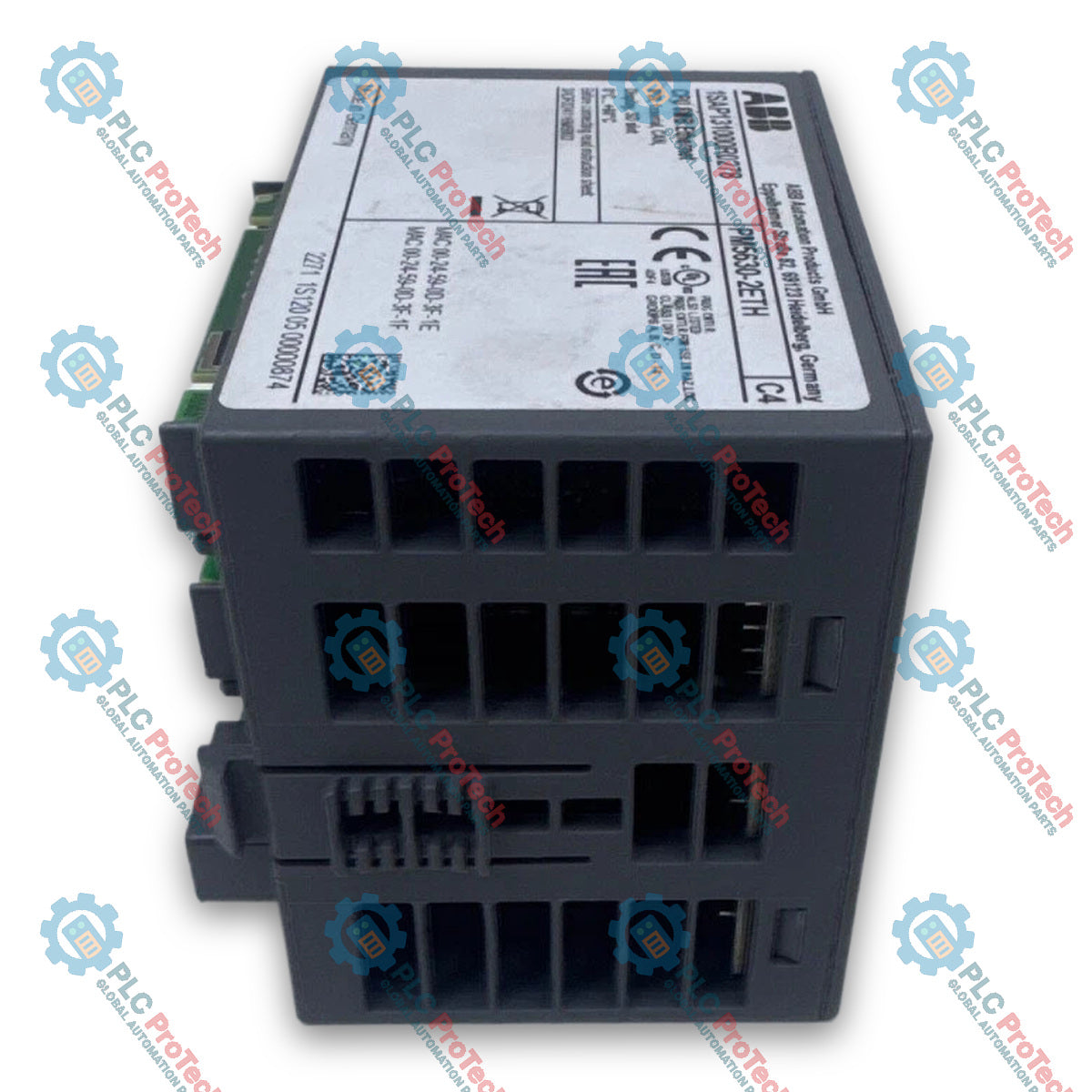

ABB 1SAP131000R0278 PM5630-2ETH AC500 Processor Module

Description

The ABB 1SAP131000R0278 PM5630-2ETH is an AC500 PLC processor module engineered for high-performance industrial control and automation applications. Functioning as a central processing unit within the ABB AC500 PLC platform, the module executes complex control logic, manages system memory, and orchestrates real-time communication across connected field devices and plant-level networks.

Equipped with 8 MB of user memory and high-speed processing capabilities (0.00002 ms controller processing time), the PM5630-2ETH handles intensive automation tasks efficiently. The module features two Industrial Ethernet ports alongside onboard RS232/RS485 and CAN serial/fieldbus interfaces, allowing direct connection to supervisory networks, HMIs, drives, and distributed field devices without requiring additional communication modules. An integrated front display provides local status monitoring and diagnostic information for field operators and maintenance teams.

Powered by a standard 24 V DC supply, the ABB PM5630-2ETH mounts on a standard AC500 terminal base to integrate into modular PLC racks. Its compact IP20 form factor makes it ideal for cabinet-mounted machine automation, process control systems, and distributed automation networks.

Features

• AC500 PLC CPU Architecture: Serves as the central processing unit for the modular ABB AC500 platform, delivering high-speed execution for complex control algorithms.
• High Processing Speed: Features an ultra-fast controller processing time of 0.00002 ms for rapid logic execution and tight process synchronization.
• Integrated Dual Ethernet: Features two Industrial Ethernet hardware interfaces for network topology integration, fieldbus over Ethernet, and PLC-to-PLC/SCADA communications.
• Multi-Protocol Serial & CAN Support: Includes configurable RS232/RS485 and CAN interfaces for direct connection to HMIs, drives, and specialized instrumentation.

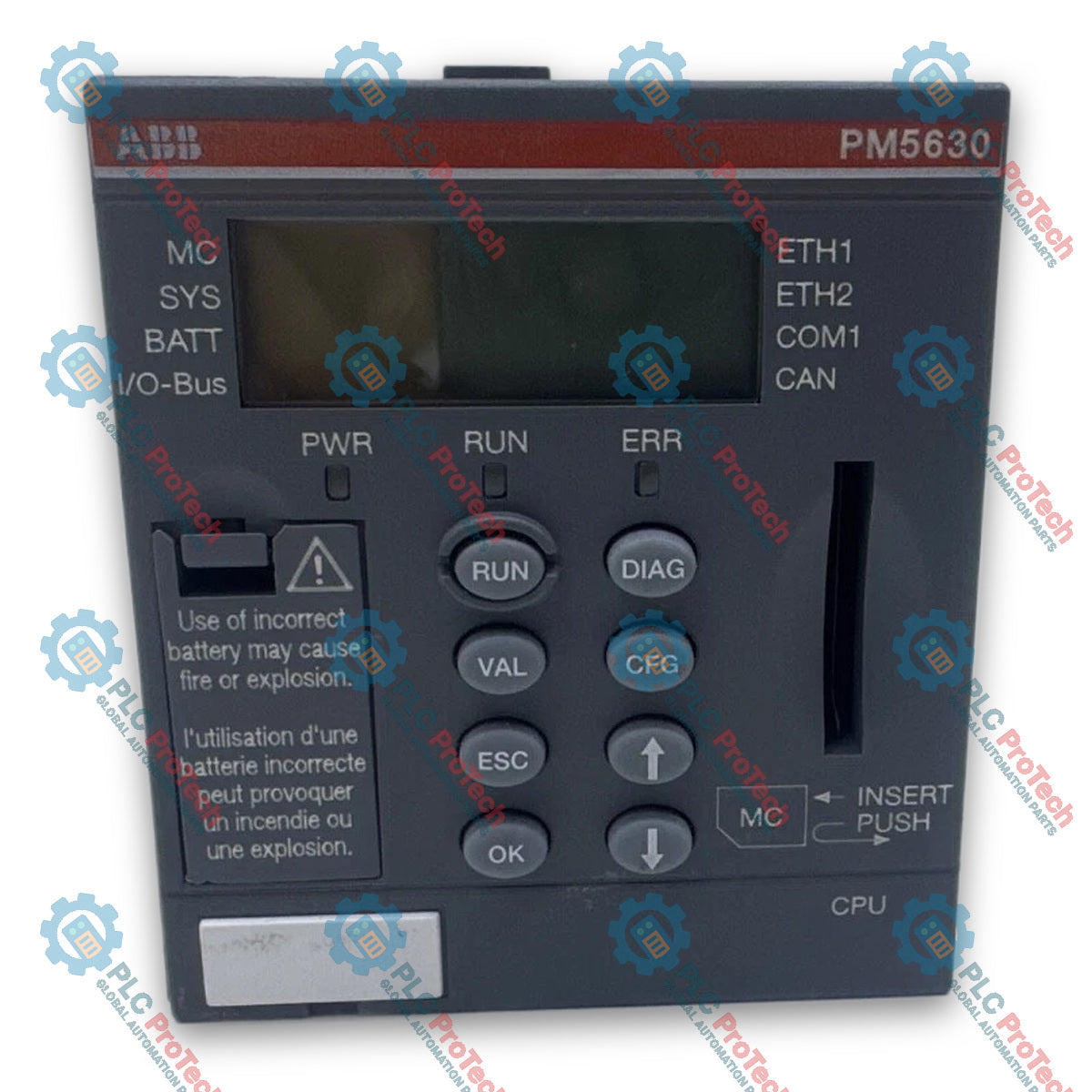

• Onboard Diagnostic Display: Features an integrated LCD display and keypad interface for direct monitoring of system states, IP addresses, and operational diagnostics.
• Generous Memory Allocation: Offers 8 MB memory capacity (39,256 kB total memory space) to accommodate large program structures, recipe data, and local user data storage.

Applications

• Machine & Motion Control: Executes high-speed control loops and synchronized positioning commands in packaging, material handling, and assembly automation.
• Process Automation Systems: Manages batching, mixing, and environmental monitoring systems in water/wastewater, chemical, and food & beverage facilities.
• Distributed Automation Networks: Functions as a master controller or distributed processing node communicating over Industrial Ethernet and CAN networks.
• Infrastructure & Energy Management: Coordinates local control and remote telemetry for building automation, pumping stations, and power distribution monitoring.

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. Safety Precaution: Disconnect all power sources before mounting, removing, or wiring the processor module or its associated terminal base.
2. Terminal Base Mounting: Secure the appropriate AC500 terminal base to a standard 35 mm DIN rail or mounting plate inside an IP54-rated enclosure.
3. Module Insertion: Carefully align the PM5630-2ETH processor module with the guide rails of the terminal base and push firmly until the locking mechanism engages.
4. Power Supply Connection: Connect a regulated 24 V DC supply (20.4 to 28.8 V DC operating range) to the designated supply terminals on the terminal base.
5. Network Cabling: Plug shielding-compliant RJ45 cables into the Ethernet ports. Verify correct shielding and grounding protocols for RS232/RS485 and CAN networks to prevent communication interference.

Configuration & Maintenance Guidelines

1. Software Environment: Program and configure the PM5630-2ETH using ABB Automation Builder engineering software.
2. Communication Setup: Assign the IP address, subnet mask, and protocol parameters for the dual Ethernet interfaces and configure serial/CAN communication parameters within Automation Builder.
3. Local Monitoring: Use the front-panel display and navigation buttons to verify network parameters, CPU status, and fault messages directly at the cabinet.
4. Parameter Backup: Maintain an up-to-date backup of the PLC project file and firmware settings prior to replacing or servicing the processor module.
5. Replacement Note: If replacing a legacy unit, note that ABB lists 1SAP131000R0378 as the updated replacement product ID. Verify software and firmware compatibility before swapping hardware.

Compliance and Certifications

• CE Declaration of Conformity: Certified under 3ADR980144
• RoHS Compliance: Directives 2011/65/EU and Amendment 2015/863 compliant
• REACH Compliance: Declarations registered under 3ADR980139
