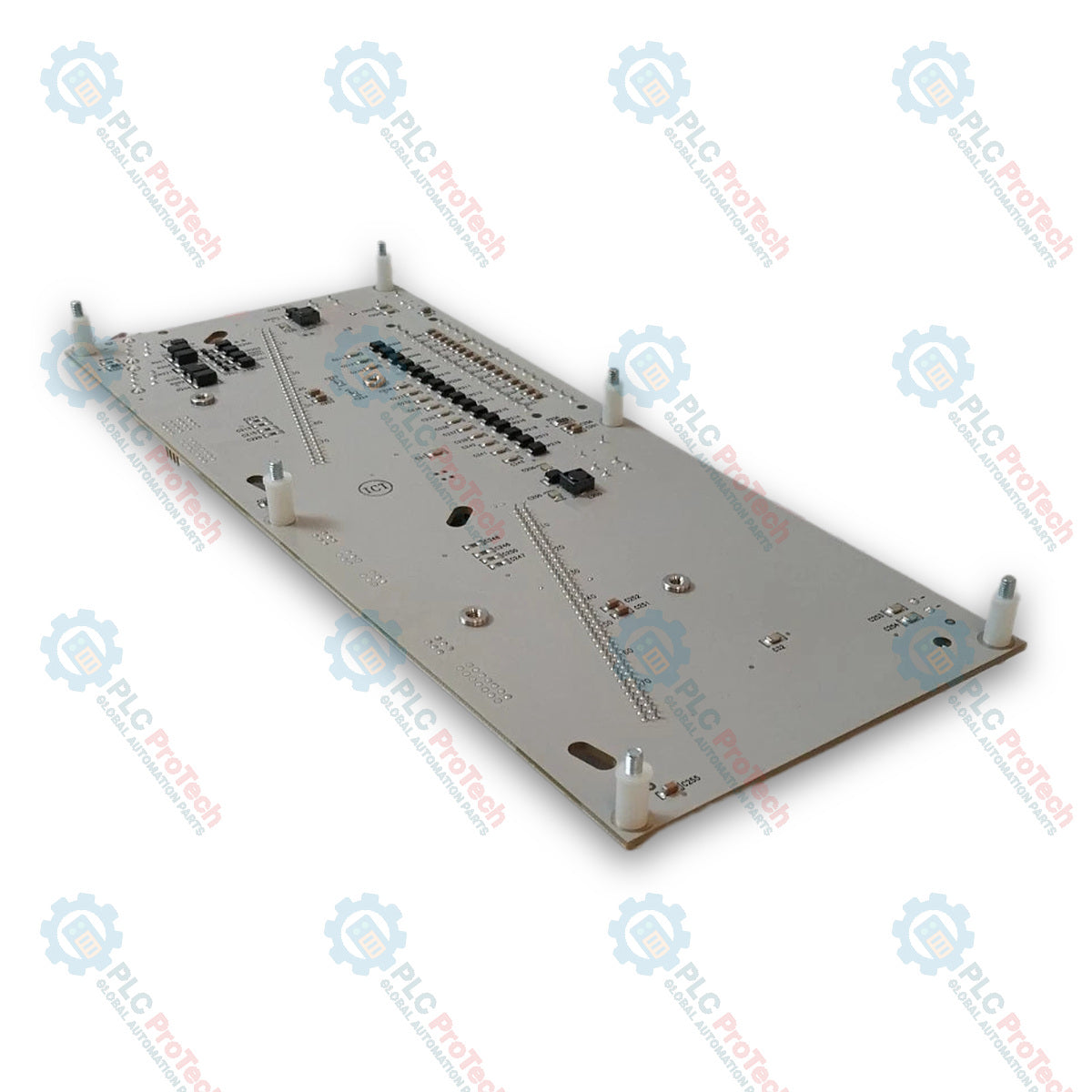

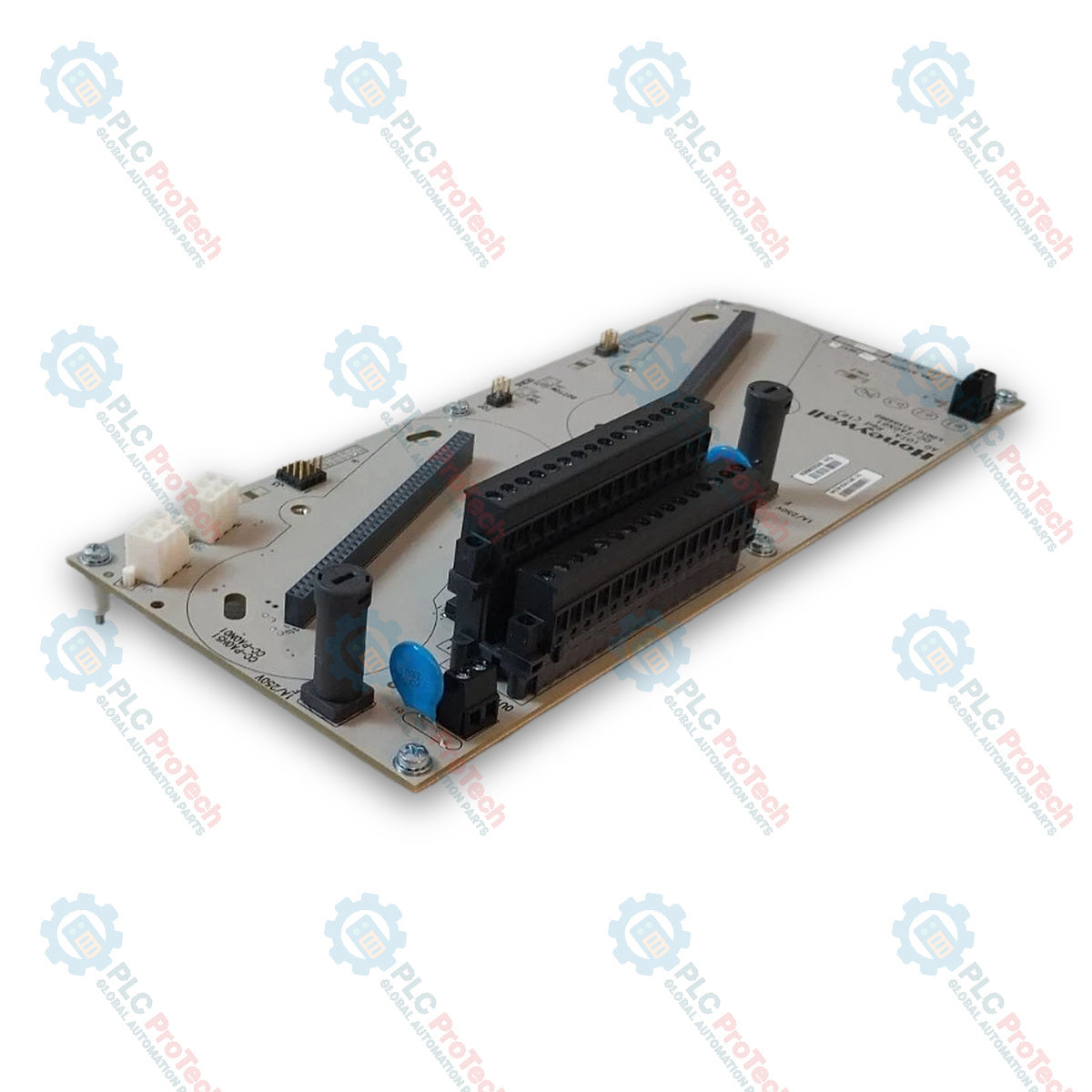

Honeywell DC-TAOX61 Analog Output IOTA Module

SKU DC-TAOX61

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Honeywell
Product No.: DC-TAOX61
Country of origin:United States
Product Type: Analog Output IOTA Module
Payment: T/T, Western Union
Weight: 250g
Dimensions: 141.5 mm x 85.75 mm x 10 mm
Shipping port: Xiamen
Warranty: 12 months

Description

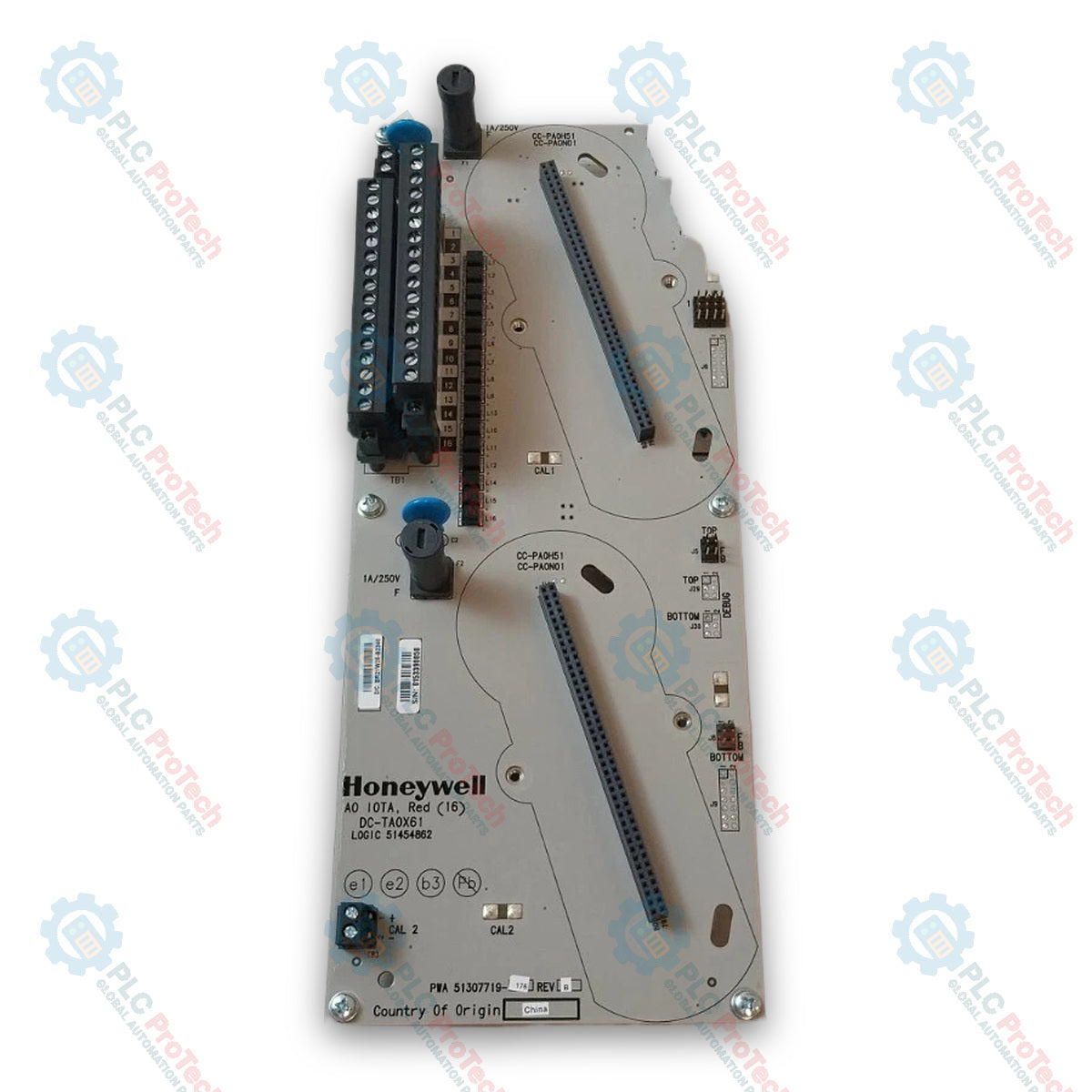

The Honeywell DC-TAOX61 is an Input Output Termination Assembly (IOTA) designed for process automation systems within the Universal Marshalling Solution EP-SCA-100 framework. It functions as an interface unit supporting Analog Output with non-HART and Analog Output with HART configurations when paired with compatible I/O modules like CC-PAON01 or CC-PAOH51 and the CC-UGAO02 Analog Output Barrier module. The assembly provides secure interconnectivity between field instruments in hazardous locations and DCS equipment on the safe side.

Features

Compatible with CC-UGAO02 galvanically isolated single-channel analog output barrier modules
Supports 4 to 20 mA signals with or without HART protocol depending on connected I/O module
Integrates with EP-SCA-100 Universal Signal Conditioning Assembly CC-UGIA01
Provides interface routing to 37-pin DSUB connectors and 3-tier terminal blocks

Applications

DCS analog output signal routing and termination
Universal marshalling field instrumentation interfacing
Hazardous area analog output signal isolation

Ordering Information

IOTA Model	Supported IO Module	IO Type	Description
DC-TAOX61	CC-PAON01	AO	Analog Output with non-HART
DC-TAOX61	CC-PAOH51	AO-HART	Analog Output with HART

Technical Specifications

Parameter	Specification
Manufacturer	Honeywell
Country of Origin	China
Compatible Barrier Module	CC-UGAO02
System Assembly	EP-SCA-100 / CC-UGIA01
Operating Nominal Supply Voltage	24 VDC
Barrier Rated Current	69 mA at 24 V
Barrier Power Consumption	1.628 W at field current of 21.1 mA with 200 ohm load
Isolation Voltage (Power/DCS to Field)	1500 VAC
Maximum Load	650 ohms (including cable resistance)
DCS Interface Connector	37 pin DSUB connector on CC-UGIA01
HAZLOC Terminal Type	3 tier terminal blocks on CC-UGIA01
Operating Temperature	-40 degC to +70 degC
Storage / Transport Temperature	-40 degC to +85 degC
Permissible Relative Humidity	5% to 95% (non-condensing)
Operational Vibration	0.5g at 10 Hz to 150 Hz
Non-Operational Vibration	1g at 10 Hz to 150 Hz
Operational Shock	5g
Non-Operational Shock	15g
Ingress Protection Rating	IP20 (as per IEC 60529)
Flammability Rating	V0 (as per UL 94)
Maximum Safe Voltage (Um)	250 V
Open Circuit Voltage (Uo)	25.2 V
Short Circuit Current (Io)	113.1 mA
Power (Po)	712.7 mW

Installation Guidelines

Ensure connection to CC-UGIA01 carrier base and align mechanical keys to prevent mismatching.
Connect field wiring to the 3-tier terminal blocks designated for hazardous area field connections.
Route safe-area DCS connections using 37-pin DSUB cabling.
Maintain proper grounding and electrical isolation rated up to 1500 VAC between power/DCS and field connections.

Compliance and Certifications

IP20 as per IEC 60529
UL 94 V0

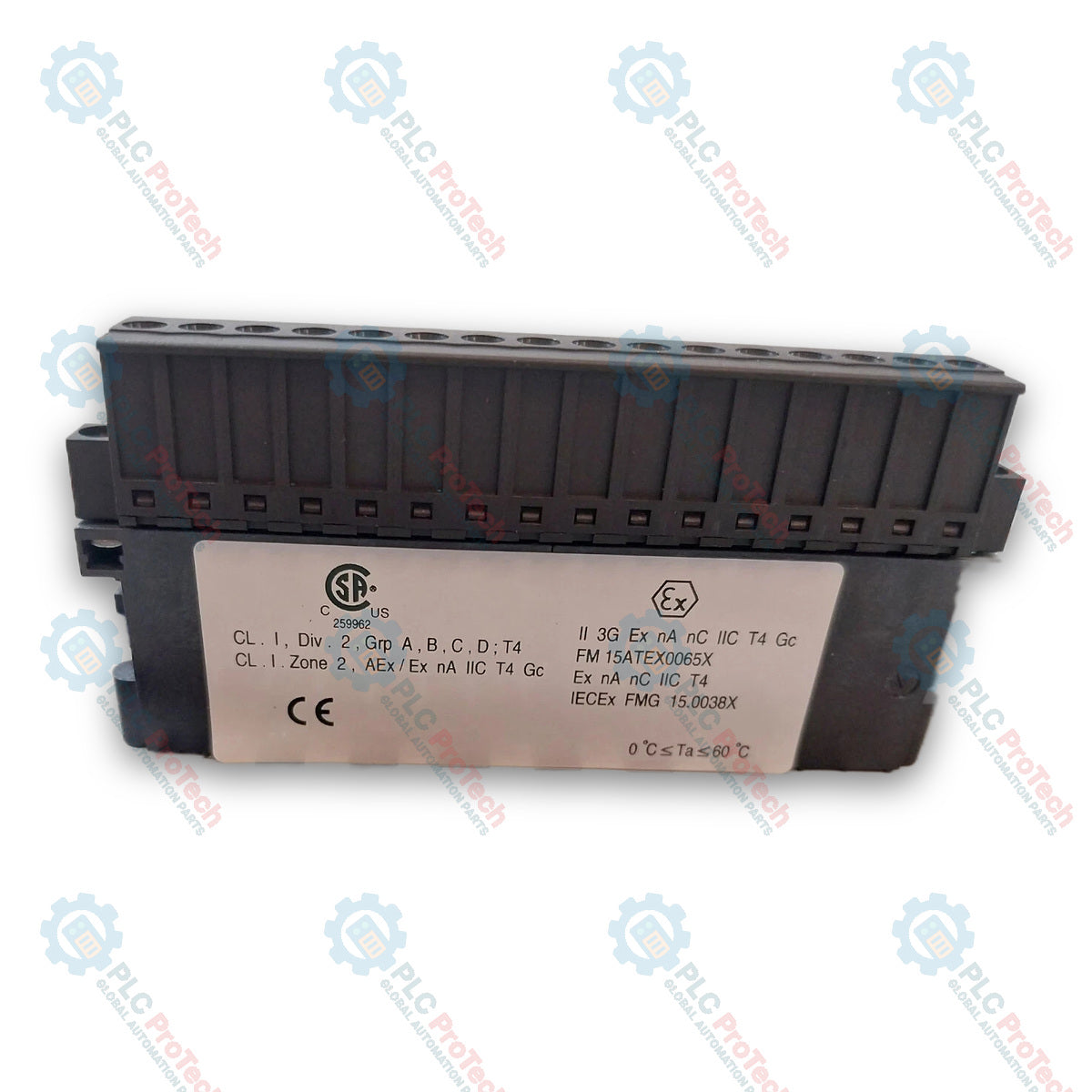

ANSI/ISA 60079-0, 60079-15, 60079-11, 60079-7
EMC Directive 2014/30/EU (IEC 61326-1 2021)
ATEX: Ex ec [ia Ga] IIC T4 Gc
IECEx: Ex ec [ia Ga] IIC T4 Gc
USA/Canada: Class I Division 2, Group A, B, C, D, T4; Ex ec [ia Ga] IIC T4 Gc; Ex nA [ia Ga] IIC T4 Gc; Class I, Zone 2 AEx ec [ia Ga] IIC T4 Gc; Class I, Zone 2 AEx nA [ia Ga] IIC T4 Gc
RoHS compliant

FAQ

Which barrier module integrates with the IOTA for field signal isolation?

The assembly interfaces directly with the CC-UGAO02 galvanically isolated single-channel analog output barrier module.

What DCS side connector type is supported on the carrier base?

Safe-side connections route through a 37-pin DSUB connector on the CC-UGIA01 assembly.

What is the operating temperature range for the termination assembly system?

The system operates in ambient conditions ranging from -40 degC to +70 degC.
