Allen-Bradley 2711P-T6C20D8 PanelView Plus 6 600 Human Machine Interface

Description

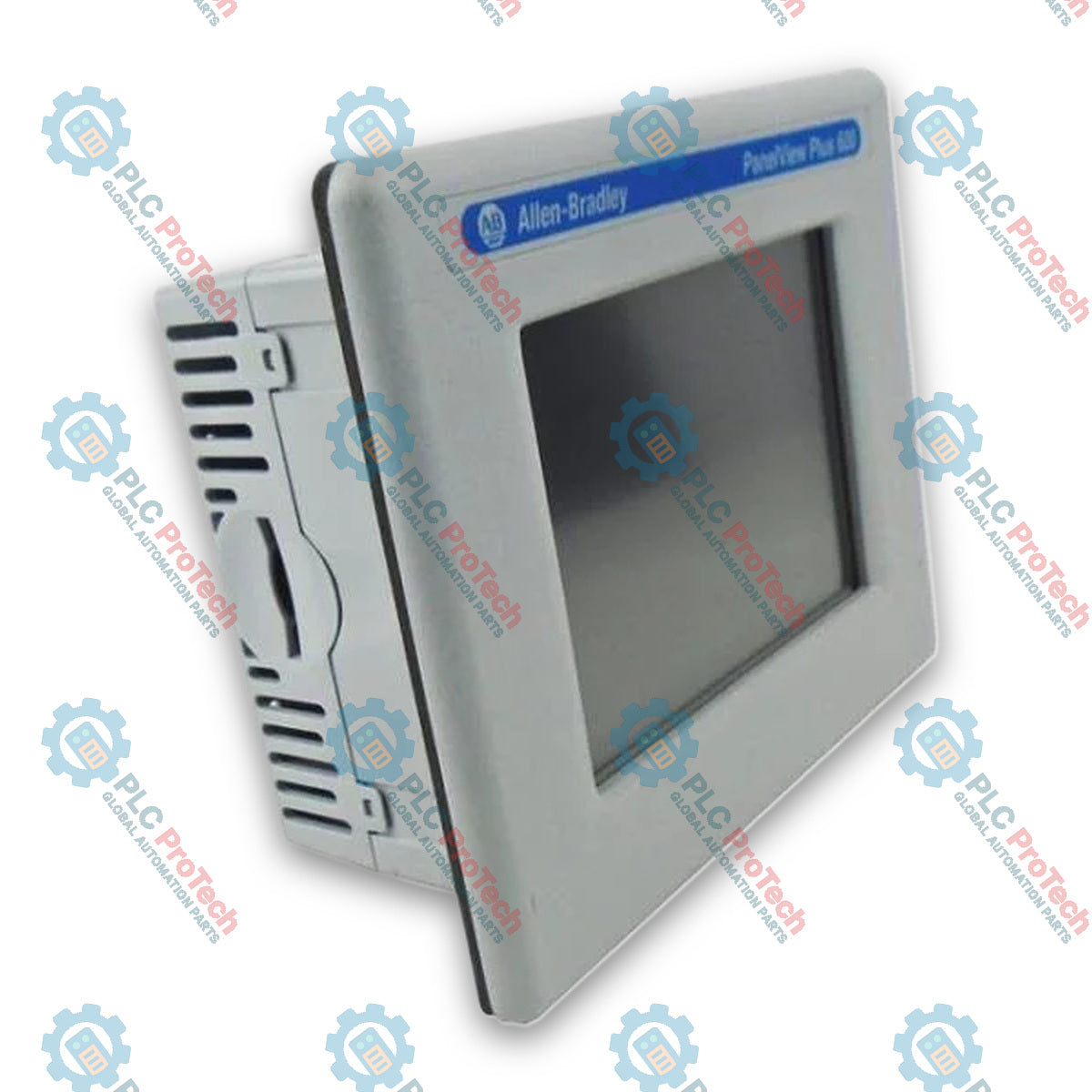

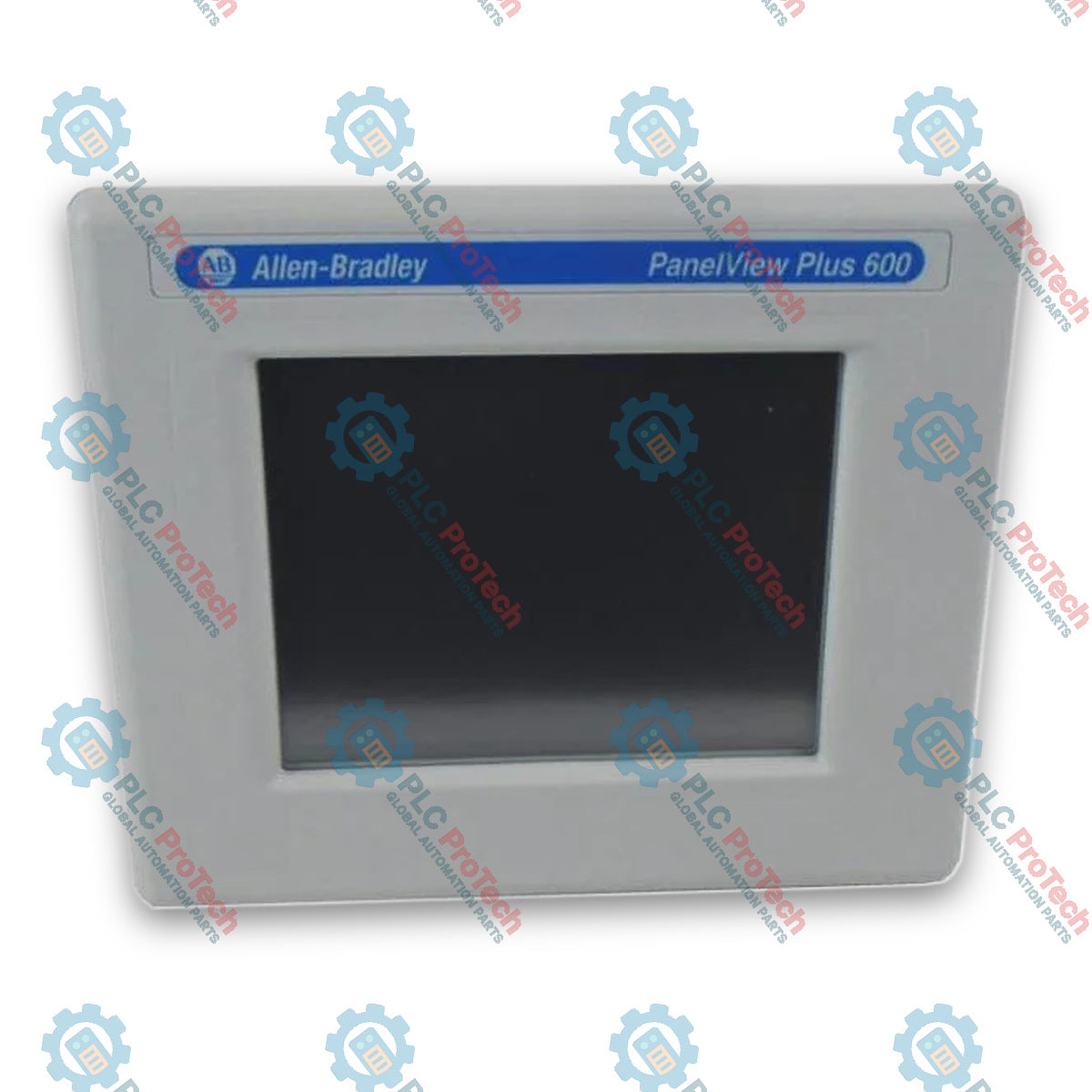

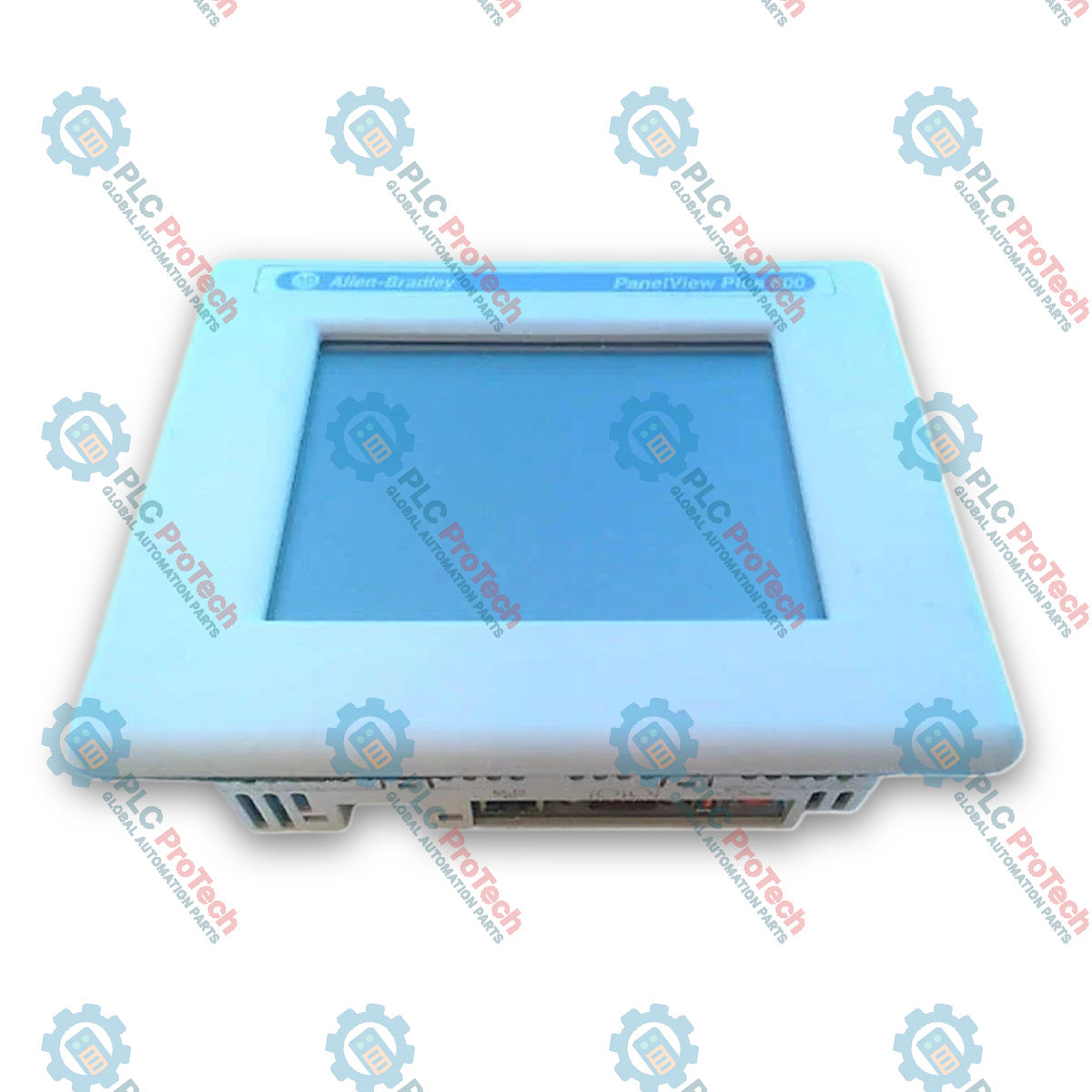

The Allen-Bradley 2711P-T6C20D8 is a PanelView Plus 6 600 operator interface terminal designed for real-time visualization, process monitoring, and machine control across industrial automation environments. Featuring a 5.7-inch color active-matrix TFT display with a resolution of 320 x 240 pixels (18-bit color graphics), this HMI terminal provides clear graphical feedback for complex machine status and process values. Operator input is performed directly via an analog resistive, 4-wire touch screen, providing an intuitive interface for field personnel.

Powered by the Windows CE 6.0 operating system (standard feature set), the 2711P-T6C20D8 comes preloaded and activated with FactoryTalk View Machine Edition (ME) Station runtime version 6.0 or later. Its hardware platform integrates an ARM 1.0 GHz processor paired with 256 MB of system DDR2 RAM and 512 MB of onboard nonvolatile flash memory (approx. 73 MB free user memory). This high-performance hardware architecture provides fast screen transitions, quick data logging, and responsive alarm handling during critical process operations.

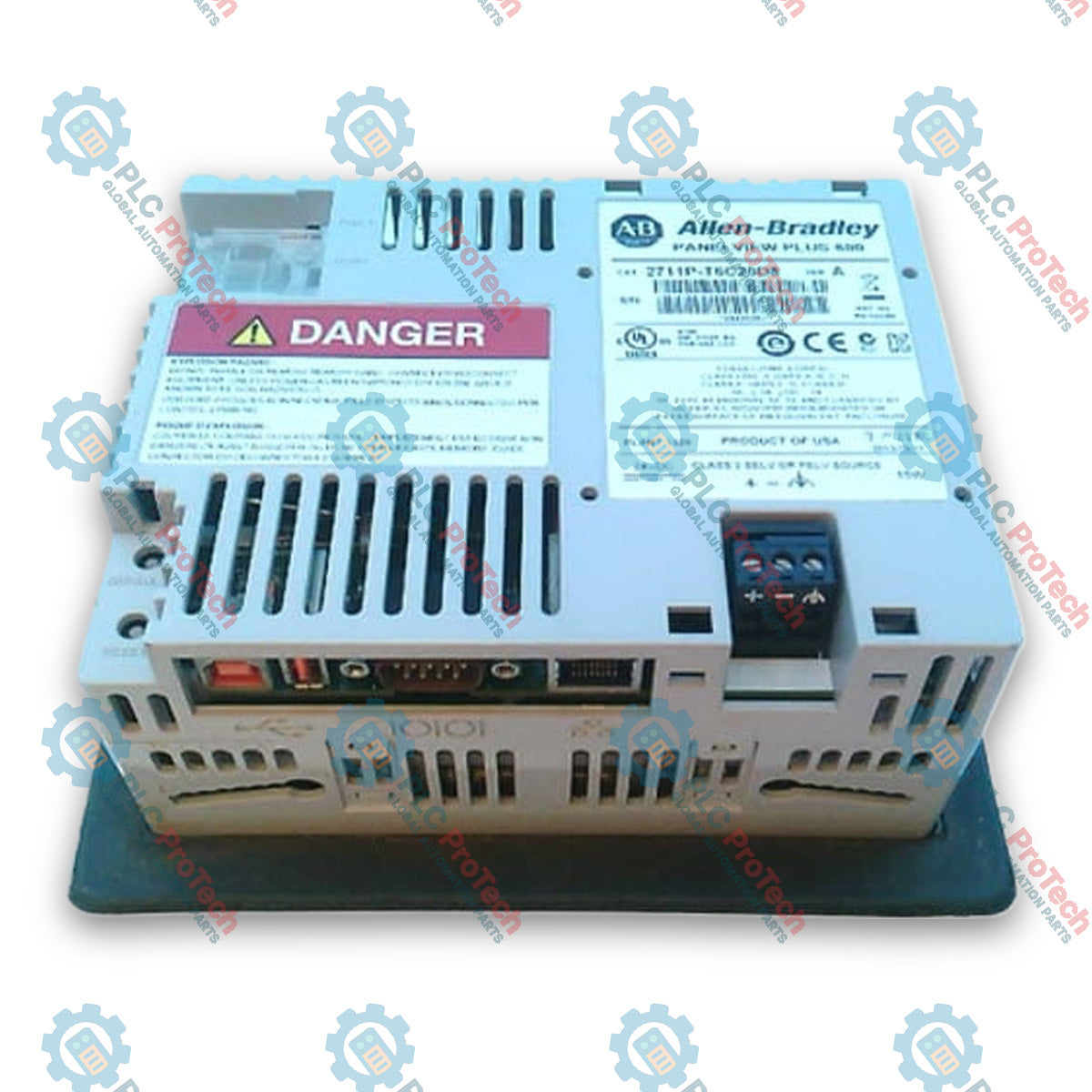

Communication capabilities include an integrated 10/100 Mbps Auto-MDI/MDI-X Ethernet port and an RS-232 serial port (catalog suffix 20 configuration). These onboard interfaces enable seamless connection to Logix-based control platforms, legacy PLCs, and third-party industrial networks using protocols such as EtherNet/IP and TCP/IP. Peripheral connectivity is provided via two high-speed 2.0 USB ports (one USB-A host port for external drives, mice, or keyboards, and one USB-B device port for direct PC access) along with an SD card slot supporting hot-swappable 1784-SDx cards for firmware updates, project transfers, and data logging.

Designed for harsh industrial environments, the 2711P-T6C20D8 operates on a 24V DC nominal power supply (18 to 30V DC range) and features a IP66 / NEMA Type 4X (indoor) front bezel rating when panel-mounted. It contains a battery-backed real-time clock for accurate timestamping of critical process alarms and data logs.

Features

• TFT Color Display: 5.7-inch diagonal active matrix TFT display with 320 x 240 resolution and 18-bit graphics capability for crisp visualization.
• Resistive Touch Screen: 4-wire analog resistive touch overlay designed for smooth operator actuation (10 to 110 g operating force).
• Integrated Communications: Built-in 10/100 Mbps Ethernet port (Auto-MDI/MDI-X) and standard RS-232 serial communication port for controller integration.
• Core Processing Power: High-speed ARM 1.0 GHz CPU backed by 256 MB DDR2 RAM and 512 MB nonvolatile memory.
• Preloaded Software: Ships preloaded and activated with FactoryTalk View Machine Edition runtime (v6.10 or later) on the Windows CE 6.0 operating system.
• USB & SD Expansion: Includes one USB host port, one USB device port, and an SD card slot for hot-swappable file transfers and data storage.
• Rugged Front Panel Protection: Front bezel meets IP66, IP65, IP54, and NEMA 4X, 12, and 13 ratings for protection against liquids and dust in industrial settings.

Applications

• Machine Level Control: Ideal for OEMs building standalone packaging equipment, assembly stations, and material handling systems.
• Process Visualization: Provides process overview displays, recipe management, and local alarm handling in chemical, water treatment, and food processing lines.
• System Upgrades: Direct replacement migration path for legacy PanelView Plus 600 touch terminals (e.g., converting 2711P-T6C20D or 2711P-T6C3D via serial DH-485).

Technical Specifications

General

Display & Operator Input

Processing & Memory

Electrical & Power

Communication & Interfaces

Mechanical

Environmental

Connections / Interfaces

Installation Guidelines

1. Cutout Preparation: Verify panel cutout dimensions are exactly 156 mm x 123 mm (6.15 in. x 4.86 in.). Ensure panel thickness is adequate to sustain terminal mounting force without flexing.
2. Clearance Requirements: Maintain sufficient clearance around the back panel (at least 50 mm / 2 in.) for adequate convection airflow and cable bend radius for Ethernet, RS-232, and power wiring.
3. Power Wiring Verification: Wire the unit to a dedicated Class 2, SELV, or PELV 24V DC power supply (18–30V DC). Confirm correct polarity before applying power.
4. Protective Grounding: Ensure functional ground connections are secured according to standard industrial automation wiring and grounding guidelines.
5. Sealing: Position the mounting gasket properly between the bezel and panel cut to maintain IP66 and NEMA 4X ingress protection. Tighten panel clamps evenly around the perimeter.

Configuration and Commissioning

1. Firmware & Application Transfer: Transfer runtime application files (.MER) using an SD card, USB flash drive, or directly over the network via FactoryTalk View Studio Transfer Utility.
2. Network Setup: Access the Windows CE control panel on the terminal to set static IP addresses, gateway settings, and subnet masks suitable for your EtherNet/IP architecture.
3. Legacy Migration Check: When replacing older legacy PanelView Plus 600 units (such as 2711P-T6C20D), ensure that application target settings in FactoryTalk View Studio are updated to PanelView Plus 6 version 6.0 or higher.
4. Data Backup: Utilize the internal SD card slot or USB flash drive to back up runtime application files and alarm/data logs during regular maintenance routines.
